Who we are

We supply the
whole fence.

Not just mesh, and not just posts — SR Metals & Wires carries the full boundary package, so one order covers the job.

01

Full gauge spread

16G, 14G, 12G, 10G and 8G on welded mesh; 3 MM and 4 MM on chainlink; 4 MM through 6 MM on sheet panels. Specify what the job needs, not what is left on the shelf.

02

Pakka & commercial

Two grades across the roll mesh and chainlink lines, so budget work and long-life installations both get the right material.

03

Four chainlink brands

Nylon coated, GI, Micon at 120 GSM and Tata — the same 1 × 1 to 4 × 4 size range across every one of them.

04

Posts in the same order

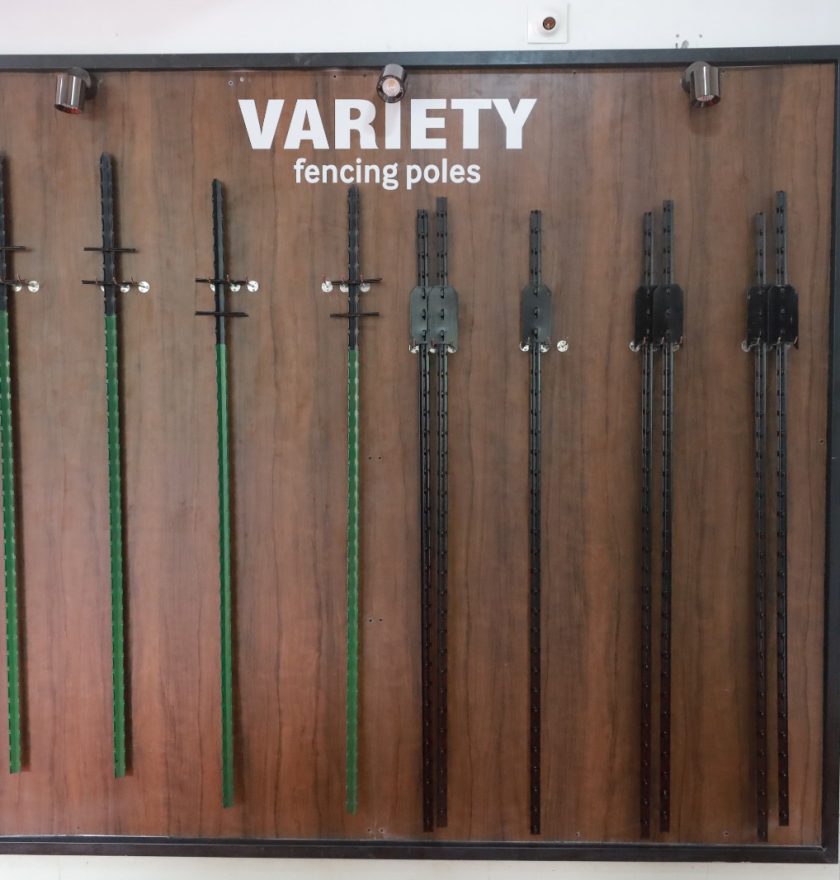

Grip, Y Wing and T Wing posts from 3 ft to 6 ft, so the mesh and the structure that holds it arrive together.

Full catalogue

Every size,
every gauge.

Open a section to see the complete specification list.

Product Grade Gauge / thickness Sizes

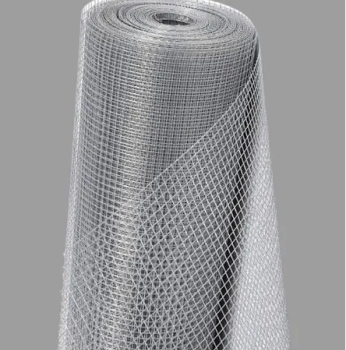

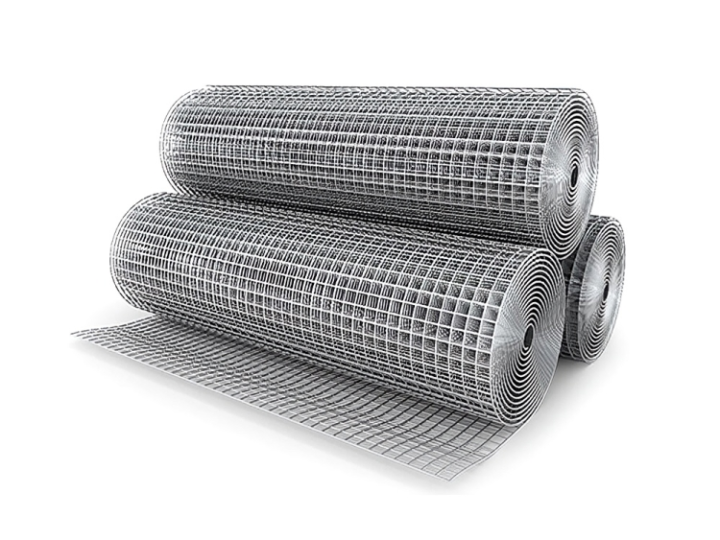

GI Welded Mesh Roll 1 × 1 Pakka & Commercial 12G · 10G · 8G 3 ft · 4 ft · 5 ft
GI Welded Mesh Roll 1 × ½ — 12G · 10G 3 ft · 4 ft · 5 ft
GI Welded Mesh Roll ½ × ½ Pakka & Commercial 16G · 14G · 12G · 10G · 8G 3 ft · 4 ft · 5 ft
GI Welded Mesh Roll 2 × 2 — 10G · 8G 3 ft · 4 ft · 5 ft
Product Grade Gauge / thickness Sizes

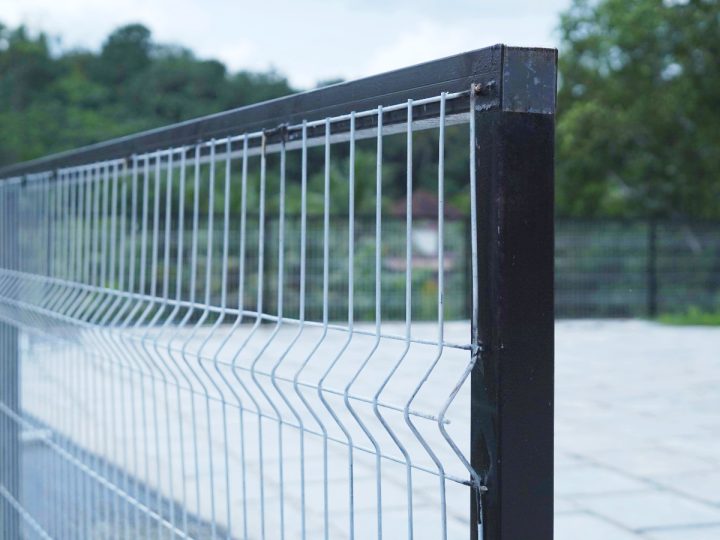

Smart 3D GI Panels — 4 MM 12 × 5 & 12 × 4
GI Welded Mesh Sheet 2 × 2 — 4 MM — 4 MM 12 × 5 & 12 × 4
GI Welded Mesh Sheet 1 × 1 — 4 MM — 4 MM 12 × 5 & 12 × 4
GI Welded Mesh Sheet 2 × 2 — 5 MM — 5 MM 12 × 5 & 12 × 4
GI Welded Mesh Sheet 2 × 2 — 6 MM — 6 MM 12 × 5 & 12 × 4

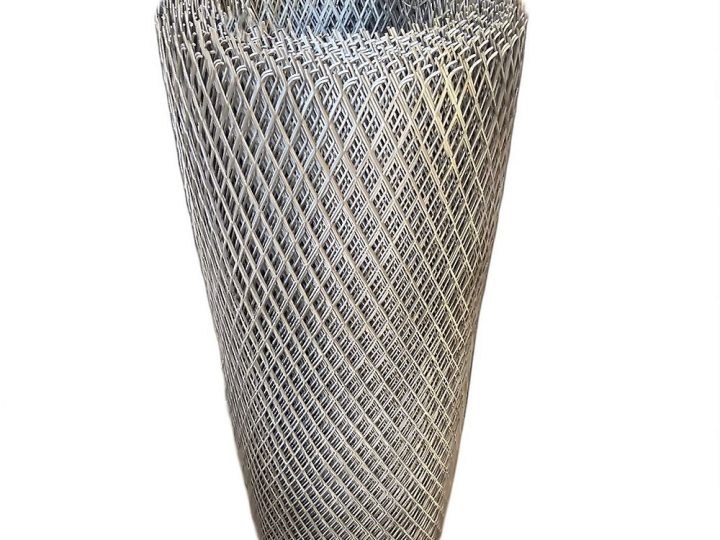

GI Diamond Mesh 2 × 2 — 4 MM — 4 MM 12 × 5 & 12 × 4
GI Diamond Mesh 2 × 2 — 6 MM — 6 MM 12 × 5 & 12 × 4
3D Panel Fixing Post Powder coated 60 × 40 MM section 4 ft · 5 ft · 6 ft · 7 ft
Product Grade Gauge / thickness Sizes

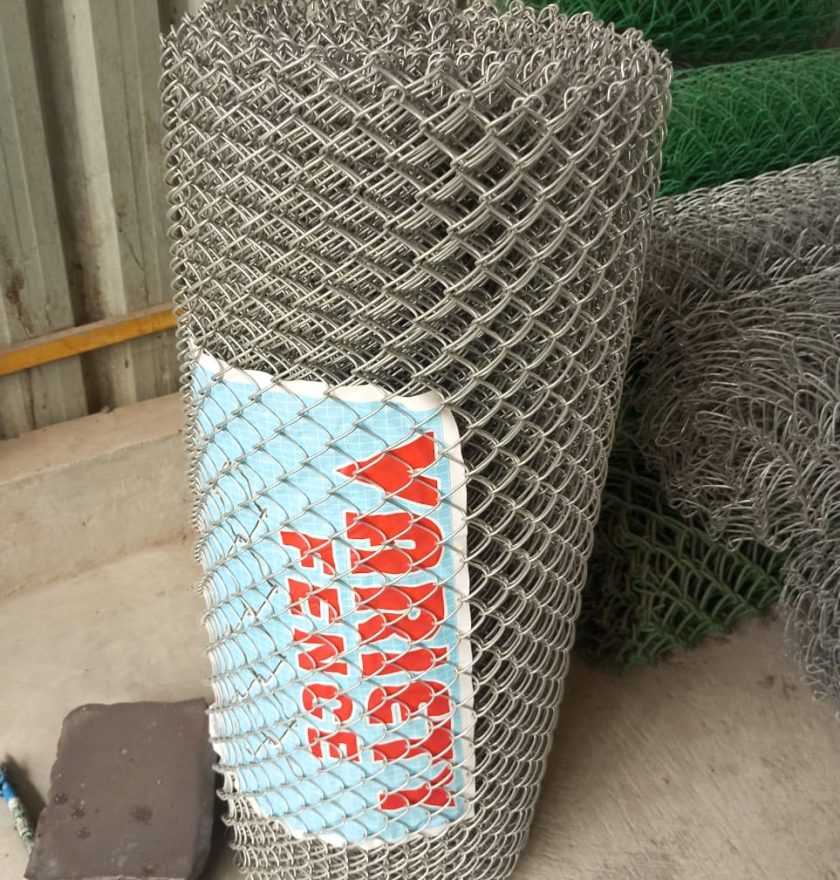

Nylon Coated Chainlink 1 × 1 — 3 MM 1 × 1 mesh aperture
Nylon Coated Chainlink 2 × 2 Pakka Pakka 3 MM · 4 MM 2 × 2 mesh aperture
Nylon Coated Chainlink 2 × 2 Commercial Commercial 3 MM · 4 MM 2 × 2 mesh aperture
Nylon Coated Chainlink 3 × 3 Pakka Pakka 3 MM · 4 MM 3 × 3 mesh aperture
Nylon Coated Chainlink 4 × 4 Pakka Pakka 3 MM · 4 MM 4 × 4 mesh aperture
GI Chainlink 1 × 1 — 3 MM 1 × 1 mesh aperture
GI Chainlink 2 × 2 Pakka Pakka 3 MM · 4 MM 2 × 2 mesh aperture
GI Chainlink 2 × 2 Commercial Commercial 3 MM · 4 MM 2 × 2 mesh aperture
GI Chainlink 3 × 3 Pakka Pakka 3 MM · 4 MM 3 × 3 mesh aperture
GI Chainlink 4 × 4 Pakka Pakka 3 MM · 4 MM 4 × 4 mesh aperture
Micon Chainlink 1 × 1 — 3 MM 1 × 1 mesh aperture
Micon Chainlink 2 × 2 Pakka Pakka 3 MM · 4 MM 2 × 2 mesh aperture
Micon Chainlink 2 × 2 Commercial Commercial 3 MM · 4 MM 2 × 2 mesh aperture
Micon Chainlink 3 × 3 Pakka Pakka 3 MM · 4 MM 3 × 3 mesh aperture
Micon Chainlink 4 × 4 Pakka Pakka 3 MM · 4 MM 4 × 4 mesh aperture
Tata Chainlink 1 × 1 — 3 MM 1 × 1 mesh aperture
Tata Chainlink 2 × 2 Pakka Pakka 3 MM · 4 MM 2 × 2 mesh aperture
Tata Chainlink 2 × 2 Commercial Commercial 3 MM · 4 MM 2 × 2 mesh aperture
Tata Chainlink 3 × 3 Pakka Pakka 3 MM · 4 MM 3 × 3 mesh aperture
Tata Chainlink 4 × 4 Pakka Pakka 3 MM · 4 MM 4 × 4 mesh aperture
Product Grade Gauge / thickness Sizes

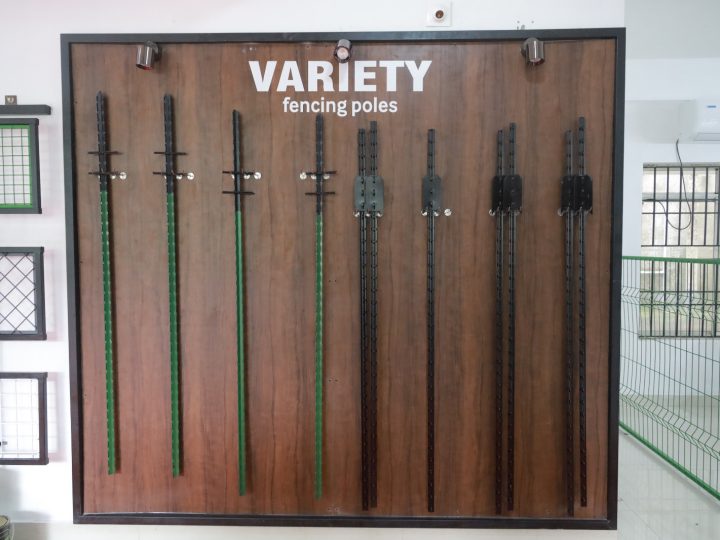

Grip Post — Light Green Light green Grip profile 3 ft (1.37 m) · 4 ft (1.68 m) · 5 ft (1.98 m) · 6 ft (2.28 m)
Y Wing Post — Black, Heavy Black · heavy Y profile 4 ft (1.68 m) · 5 ft (1.98 m) · 6 ft (2.28 m)
T Wing Post — Green + Ivory Green + ivory T profile 3 ft (1.37 m) · 4 ft (1.68 m) · 5 ft (1.98 m) · 6 ft (2.28 m)
Corner & Straining Post Heavy section With strut 5 ft (1.98 m) · 6 ft (2.28 m) · 7 ft (2.59 m)
Product Grade Gauge / thickness Sizes
Polycarbonate Plain Sheet — — Standard roofing widths

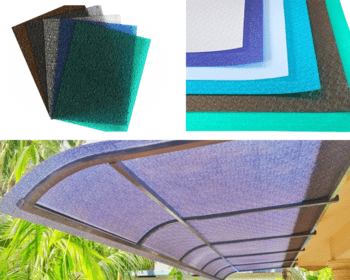

Polycarbonate Crystal / Diamond Sheet — — Standard roofing widths
Polycarbonate Rain Drop Sheet — — Standard roofing widths
Poly Trafford Sheet — — Trafford profile
Product Grade Gauge / thickness Sizes

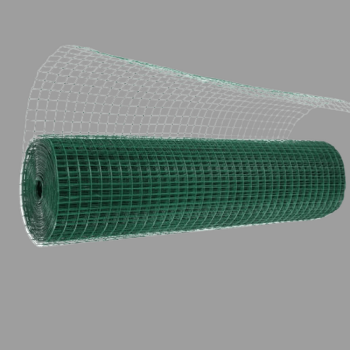

PVC Chicken Mesh — — —

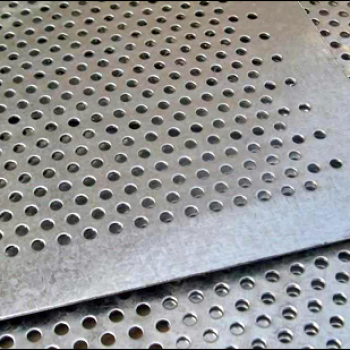

Perforated Sheet — — —

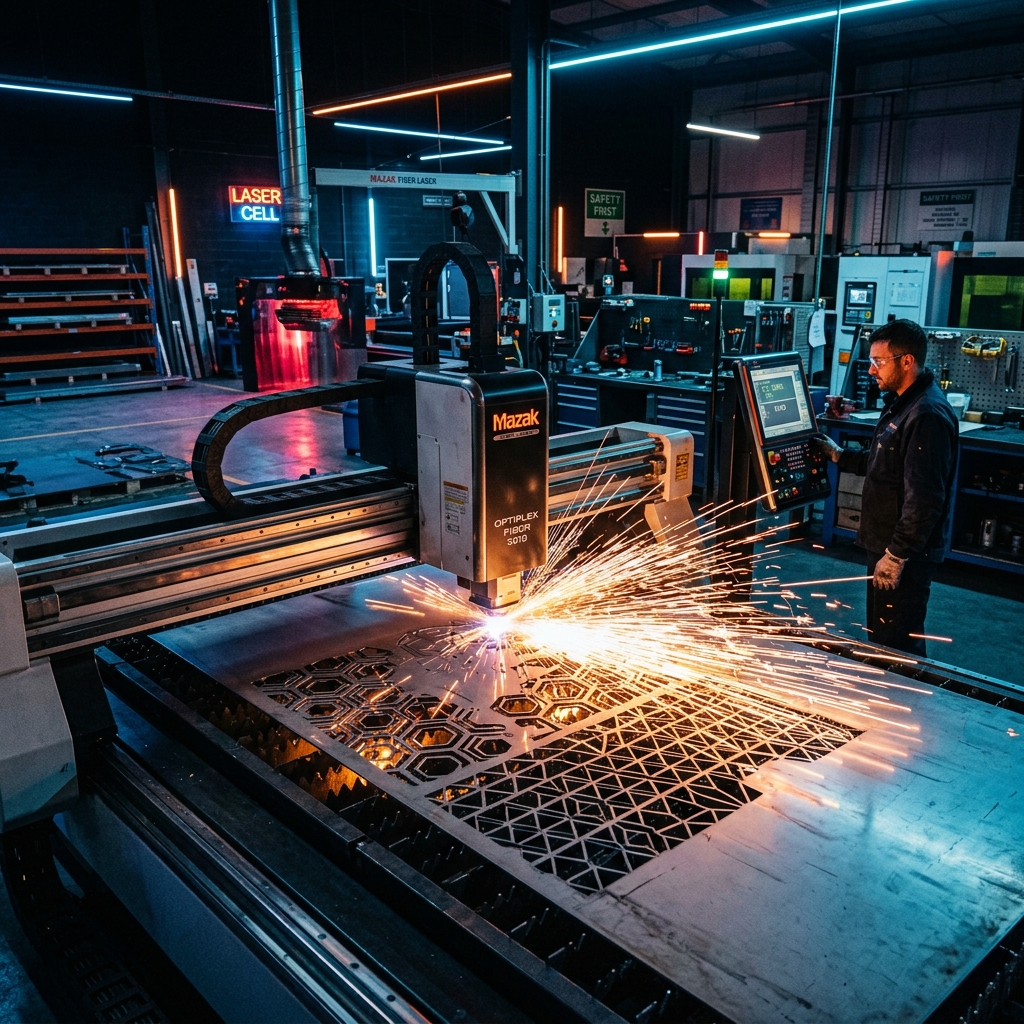

Stainless Steel Laser Cuttings — — —

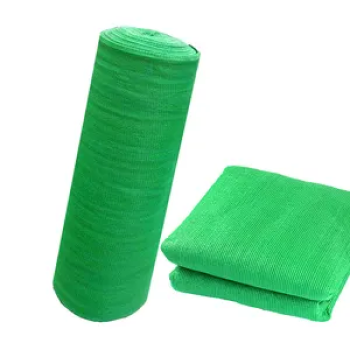

Shade Net — — —
Blue PVC Coated Wire — — —
GI Hexagonal Chicken Mesh Galvanised 20G · 22G · 24G ½" · ¾" · 1" aperture
Crimped Wire Mesh GI / MS 2 MM – 8 MM Custom sheet sizes
Expanded Metal Mesh MS / GI 1.6 MM – 3 MM sheet 8 × 4 ft sheets
Product Grade Gauge / thickness Sizes
Tension / Line Wire GI 8G · 10G 25 kg coil
Turnbuckle & Straining Bolt GI 6 MM · 8 MM · 10 MM Standard lengths
Barbed Wire Extension Arm GI Angle section 3-strand · 45° cranked
Post Base Plate GI 5 MM plate 150 × 150 MM · 200 × 200 MM
Product Grade Gauge / thickness Sizes

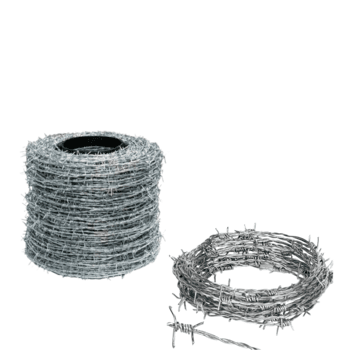

Barbed Wire — Standard gauges —
Razor Blade Concertina Coil GI / stainless clip 0.5 MM blade on 2.5 MM core 600 MM · 730 MM · 980 MM coil diameter
PVC Coated Barbed Wire PVC over GI 12G × 14G core 25 kg coil
Applications

Where it works

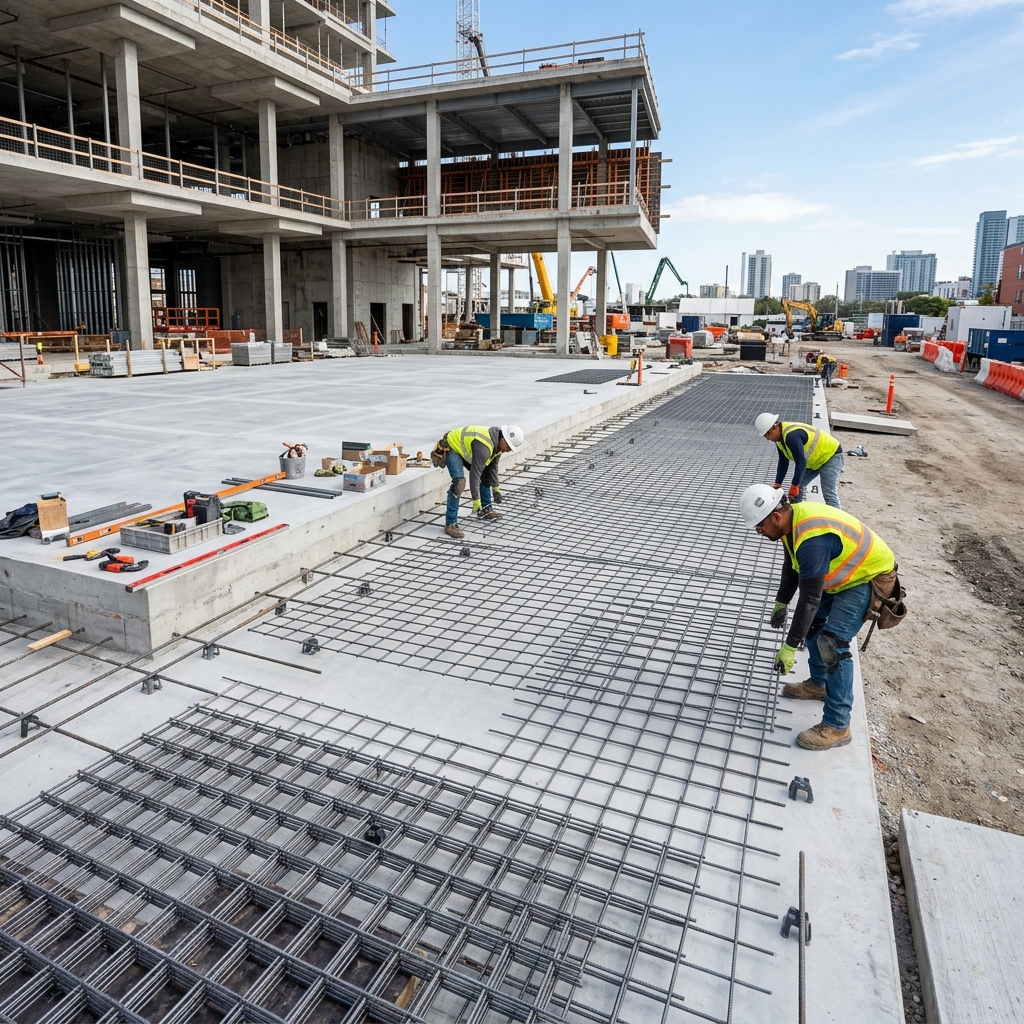

Construction

Site boundaries, plaster mesh and structural reinforcement.

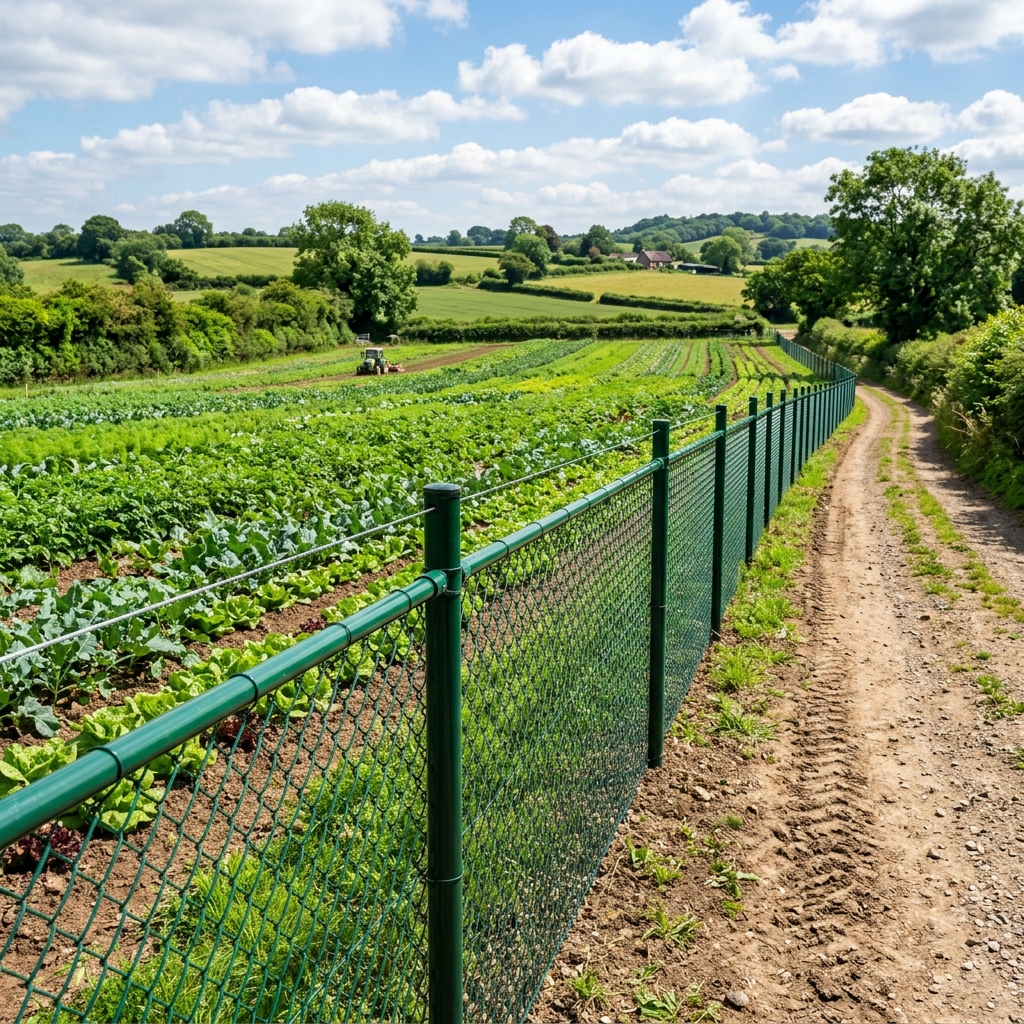

Agriculture & poultry

Farm fencing, poultry enclosures and crop protection.

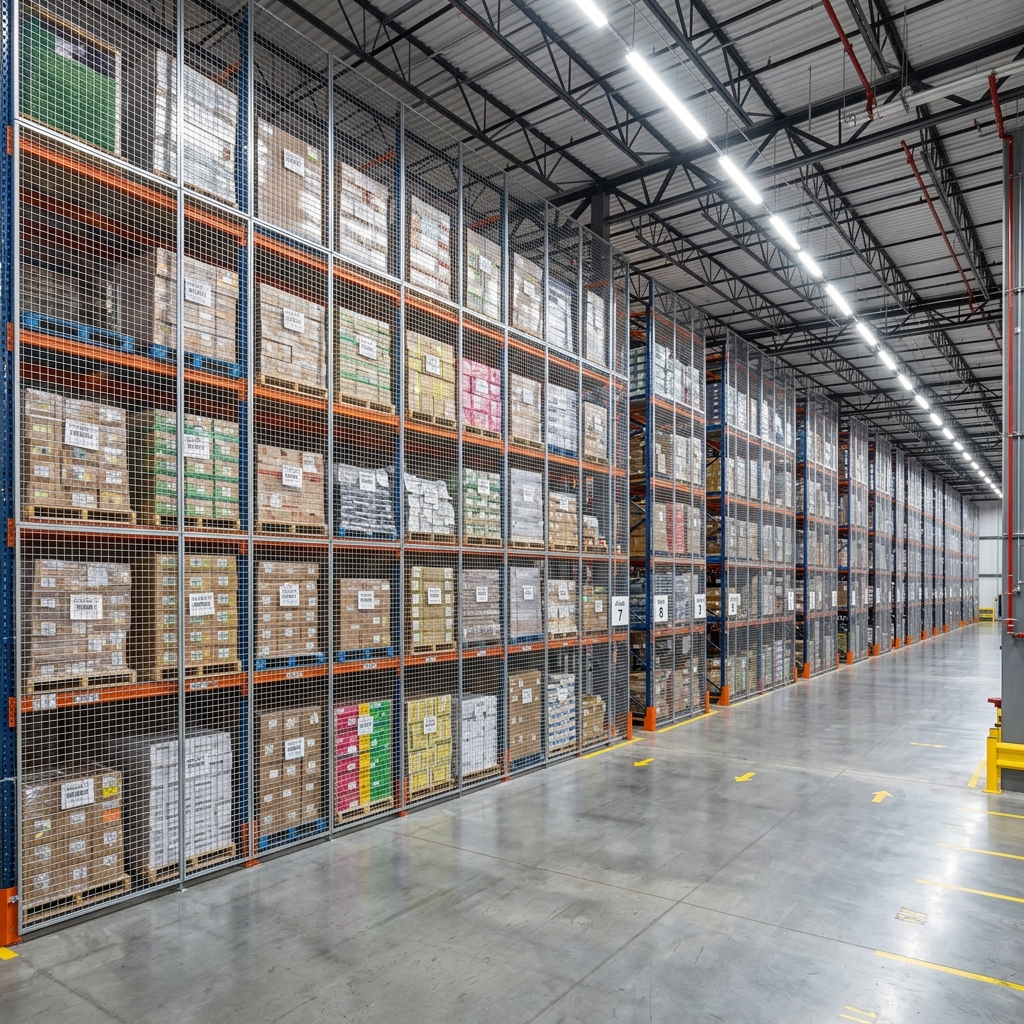

Industrial

Partitioning, racking backs and machine safety guarding.

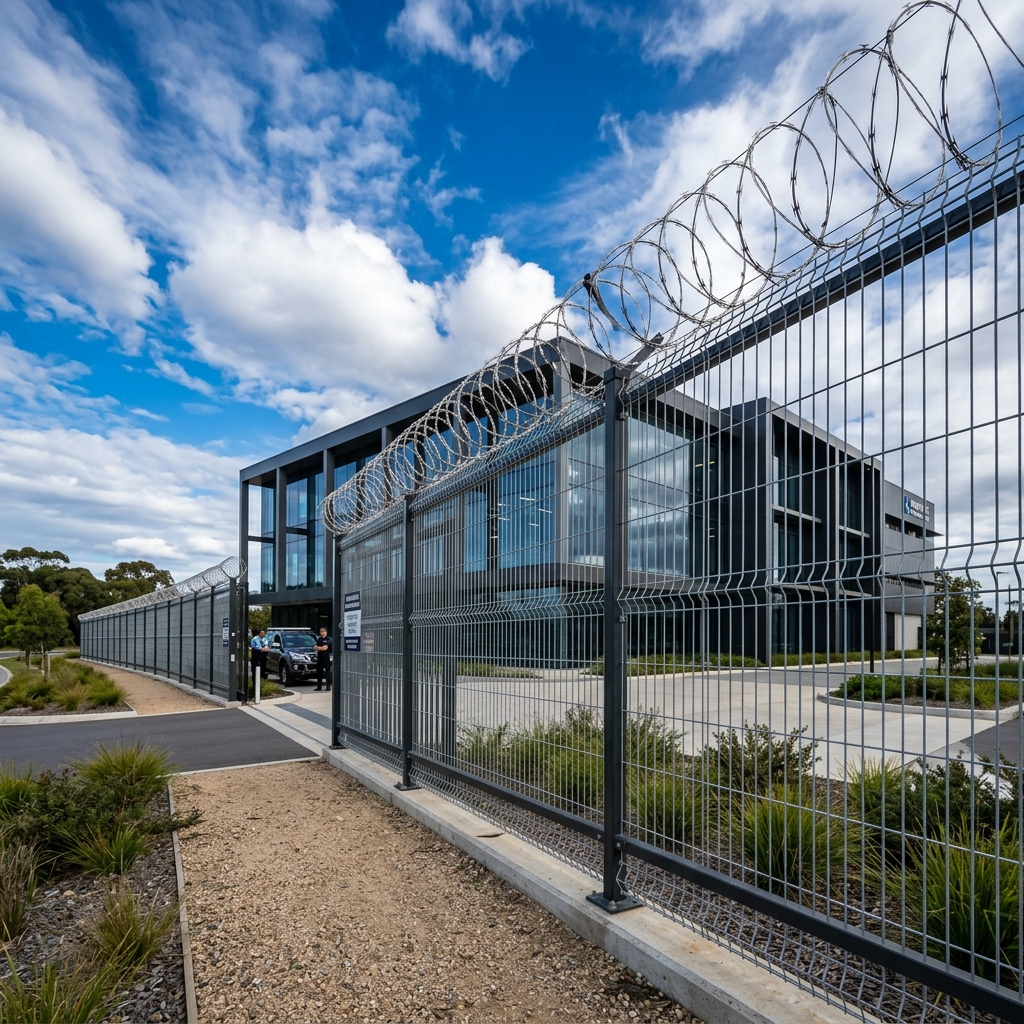

Security fencing

Perimeters for factories, plots and institutions.

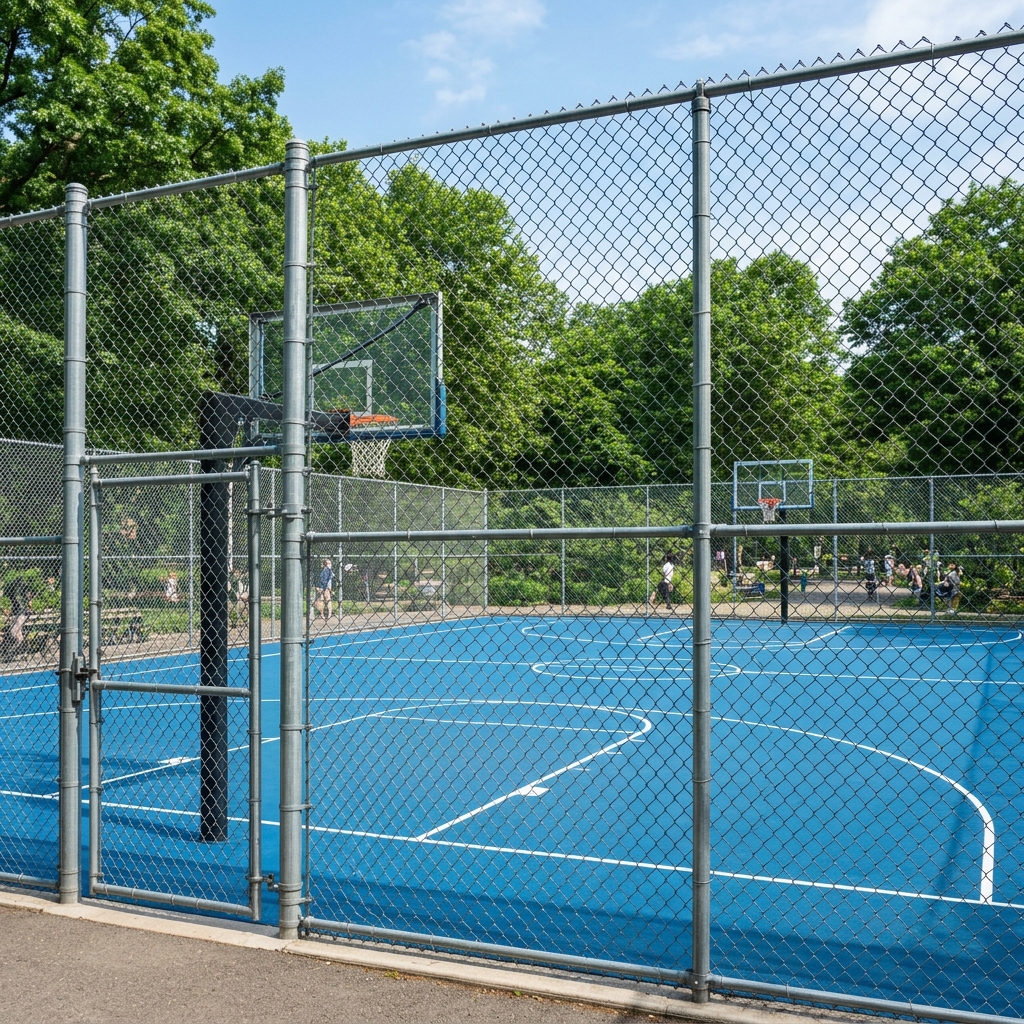

Sports grounds

Court fencing and ground boundary netting.

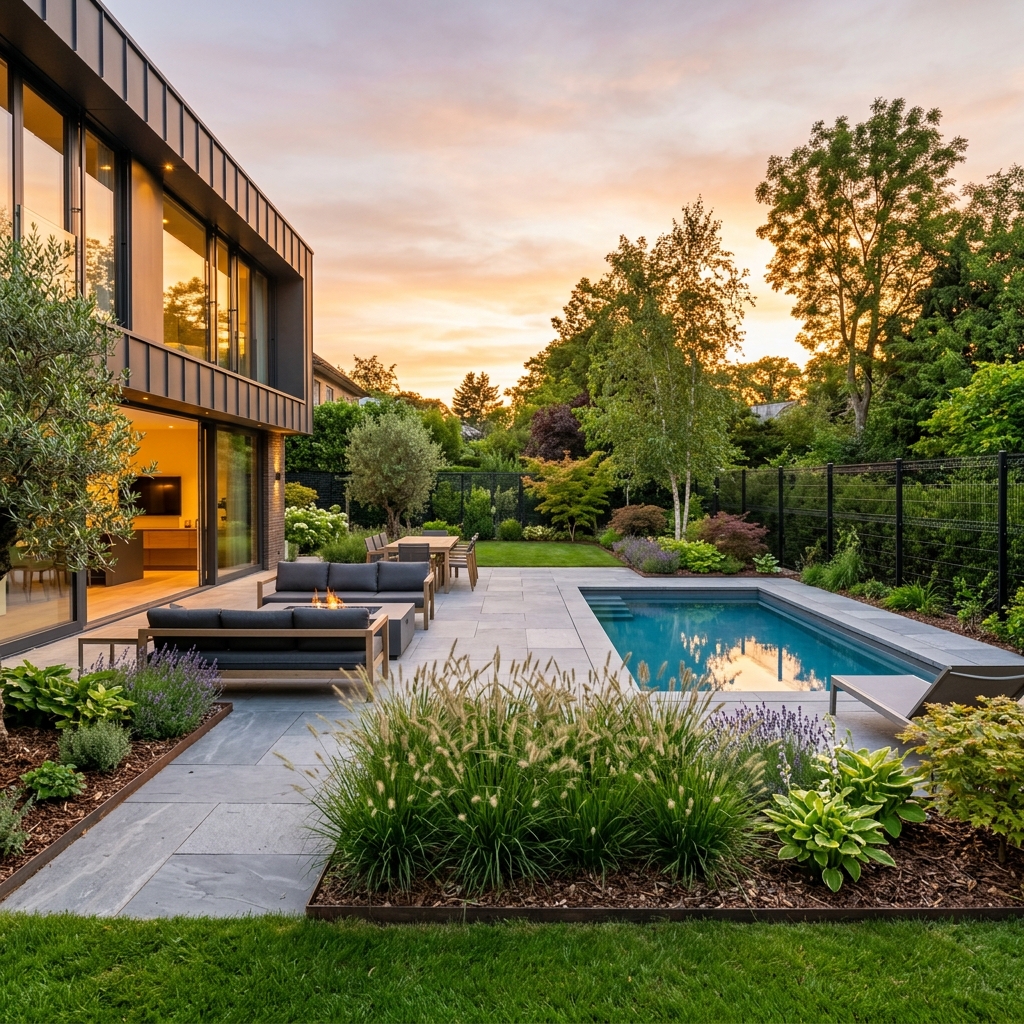

Residential

Terrace grills, garden fencing and compound walls.

How it works

From enquiry
to installed.

Four steps, and you only need the first one to get a price.

01

Tell us the run

Length, height and what the fence is holding back. If you already know the gauge and aperture, even better — send those instead.

02

We spec it

We come back with the aperture, wire thickness, grade and post type that suit the span, plus the quantity of each.

03

Quote the same day

Priced by the roll, sheet or post, with the pakka and commercial options side by side so the trade-off is visible.

04

Collect or delivered

Pick up at Vellanad, or we send it out. Mesh, posts and accessories travel together on one docket.

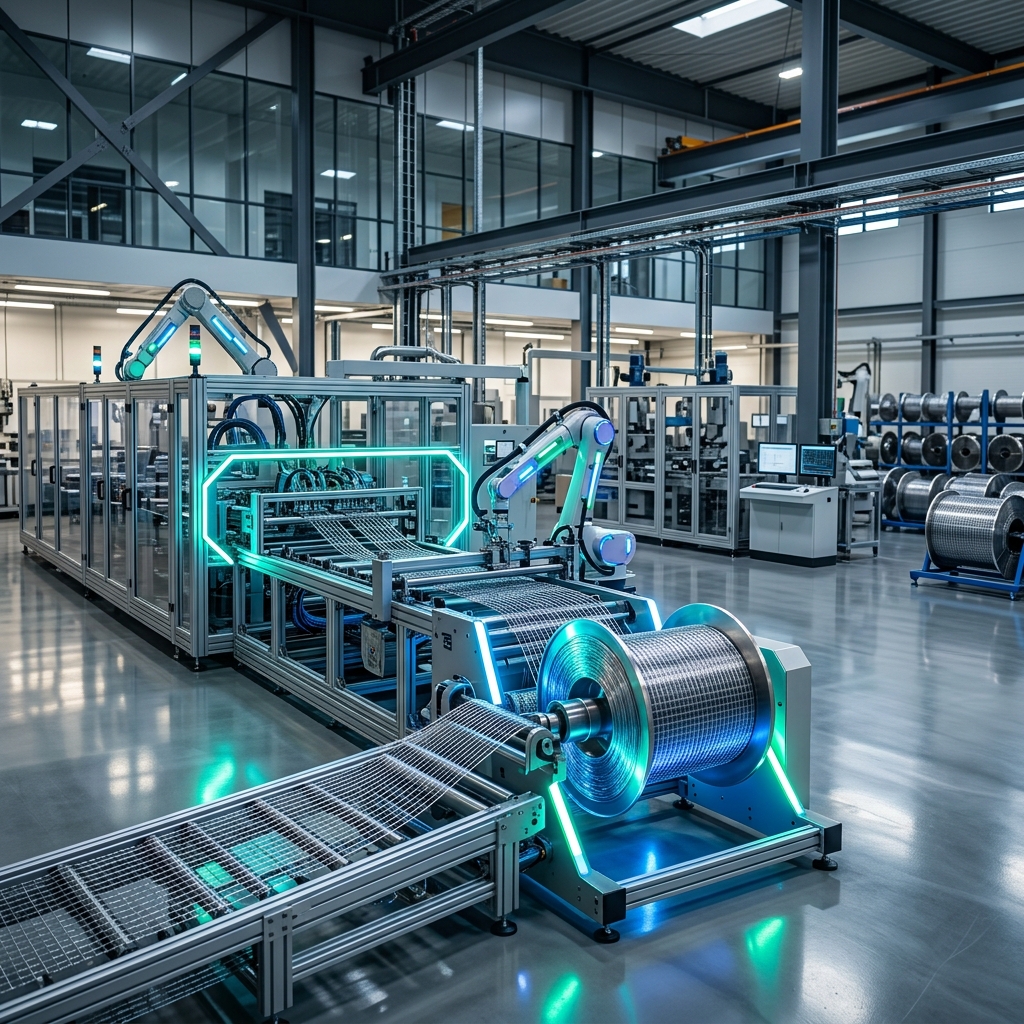

Inside the plant

See how
it is made.

From wire coil to finished roll at our Vellanad works.

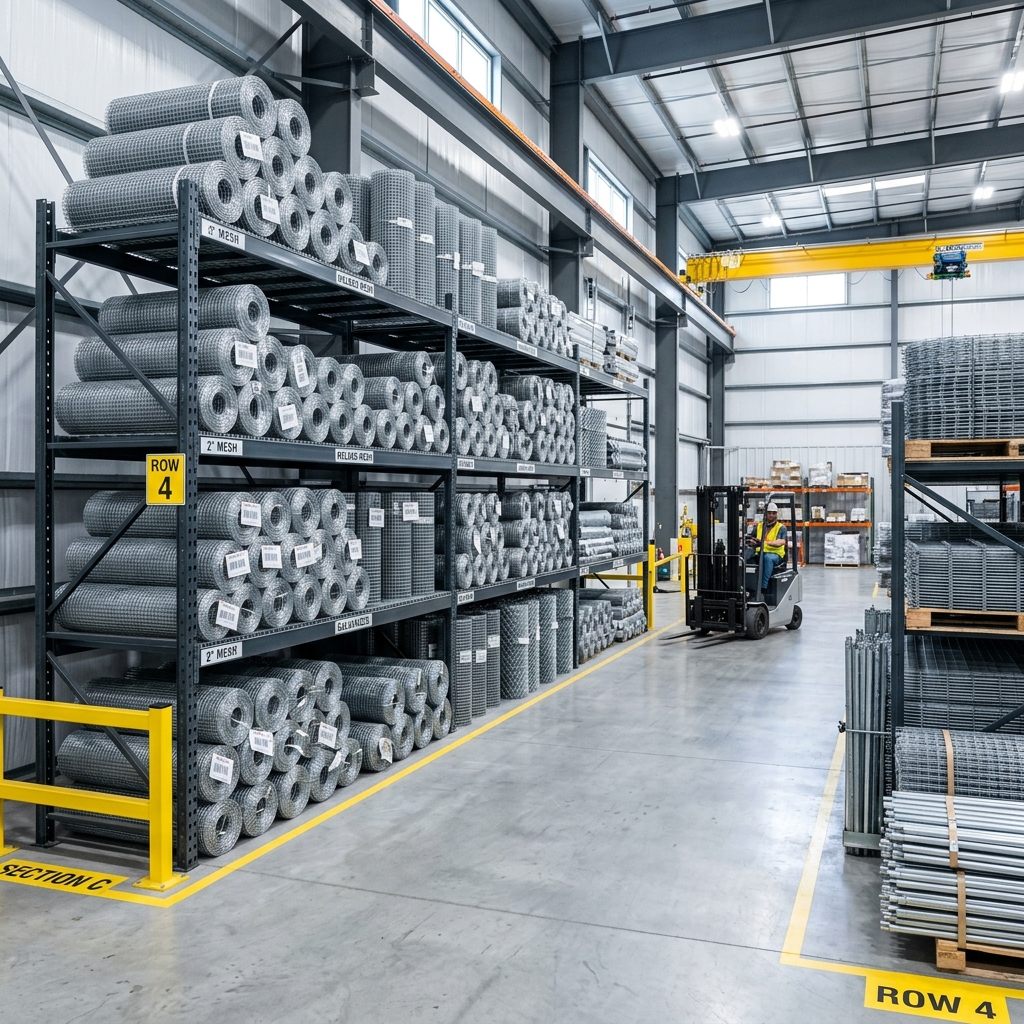

SR Metals & Wires, Vellanad

Welded mesh, chainlink and fencing poles, produced and stocked on site.

Before you order

Questions we get
every week.

Pakka is the heavier, longer-life material — a fuller wire for the stated gauge and a more consistent weld. Commercial is lighter and cheaper, and it is the right call for temporary site boundaries, crop protection and anything that will be moved again. Both are labelled and priced separately; we never substitute one for the other.

As a rule of thumb: 16G and 14G for plaster mesh, cladding and light screens; 12G and 10G for garden and poultry boundaries; 8G where the fence has to stand on its own between posts. For chainlink, 3 MM suits residential runs and 4 MM is the industrial choice. Tell us the span and what it is holding and we will confirm.

It is the aperture — the size of the opening — in inches. A 1 × 1 mesh has one-inch square holes; 2 × 2 has two-inch. Smaller apertures hold smaller things and cost more per square foot because there is more wire in them.

GSM is the weight of zinc per square metre of wire surface. At 120 GSM there is measurably more zinc than on standard galvanised wire, which is what buys the extra years in coastal and high-rainfall conditions. Inland, on a fence you expect to replace in a decade, standard GI is usually the better value.

Yes — Grip, Y Wing and T Wing posts from 3 ft to 6 ft, and they ship on the same order as the mesh. The lengths quoted are the total length including the section that goes into the ground, so allow for the buried portion when you work out finished height.

You can. We are at Veliyannoor P.O, Vellanad, Thiruvananthapuram. Call ahead on +91 99473 29555 so the order is cut and ready when you arrive.

Ready to price your run?

Gauge, size and quantity is enough. If it is urgent, message the same number on WhatsApp.

Request a quote WhatsApp us
Contact

Send us your
requirement.

Gauge, size and quantity is enough to get a quote moving.

Phone +91 99473 29555 Email srmetalsandwires@gmail.com
Address Veliyannoor P.O, Vellanad, Thiruvananthapuram, Kerala
Working hours Mon – Sat · 9 AM – 7 PM
